Controlling mix via foot controller (but not to extremes)

General
1

Hi.

In MG3, I would like to be able to control a mix cross-fade via expression pedal. IOW, when I move the pedal, I want to fade down one module and fade up another.

I can make this happen, but the fade-out is always to complete silence, which is not the goal. Instead I want the max fade-out to be to a low, non-zero, chosen level. Similarly, I would ideally want the max fade-in to be to a high, non-127 max level.

Put another way, I’d like to limit the extremes of the curves to specific values (e.g. 20, and 112).

Is this currently possible? If so, I’d appreciate a tip on how to do it. If not, I think adding this ability to the curve definitions would be very helpful in crafting pedal-controlled patches.

Thanks.

2

Can you program lower and upper values into your expression pedal ? I use an FCB 1010 expression pedal and can program cc number and upper and lower limits.

1 Like
3

when assigning a midi cc input to a control, there is a curve window.

it can be difficult to grab the top or bottom boundary.

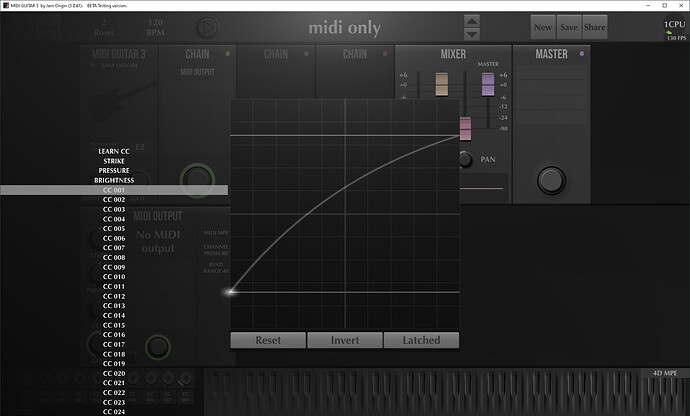

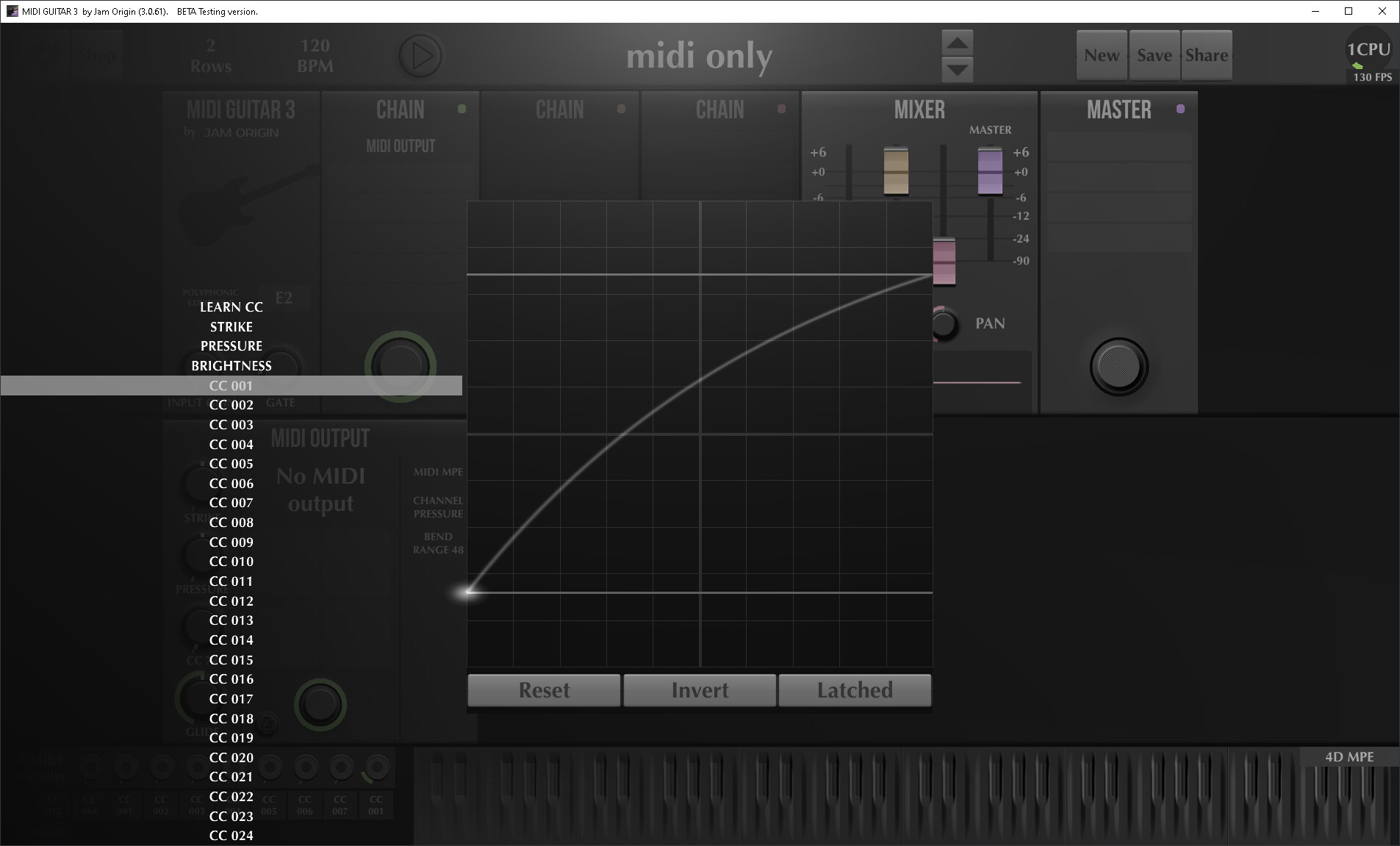

what you want will probably look like this:

curve
curve1905×1151 174 KB

1 Like
4

That picture is exactly what I want, but have not yet been able to achieve. Thanks.

Do I grab the top/bottom boundaries via the big white dot, or on the horizontal boundary lines?

5

hover over the horizontal line, the white dot will appear, then click and drag.

it seems better to stay away from the white dot for the limit adjustment.

1 Like
6

Thanks, that was helpful and I have finally succeeded!

I’ll comment here, and also in Feature Requests, that I think being able to save and load curve definitions would be a very helpful addition to MG3.

7

@Progster What approach/setup did you use in MG3 to achieve such a cross-fade?
