SWAM Sax expression

[henkdawson]

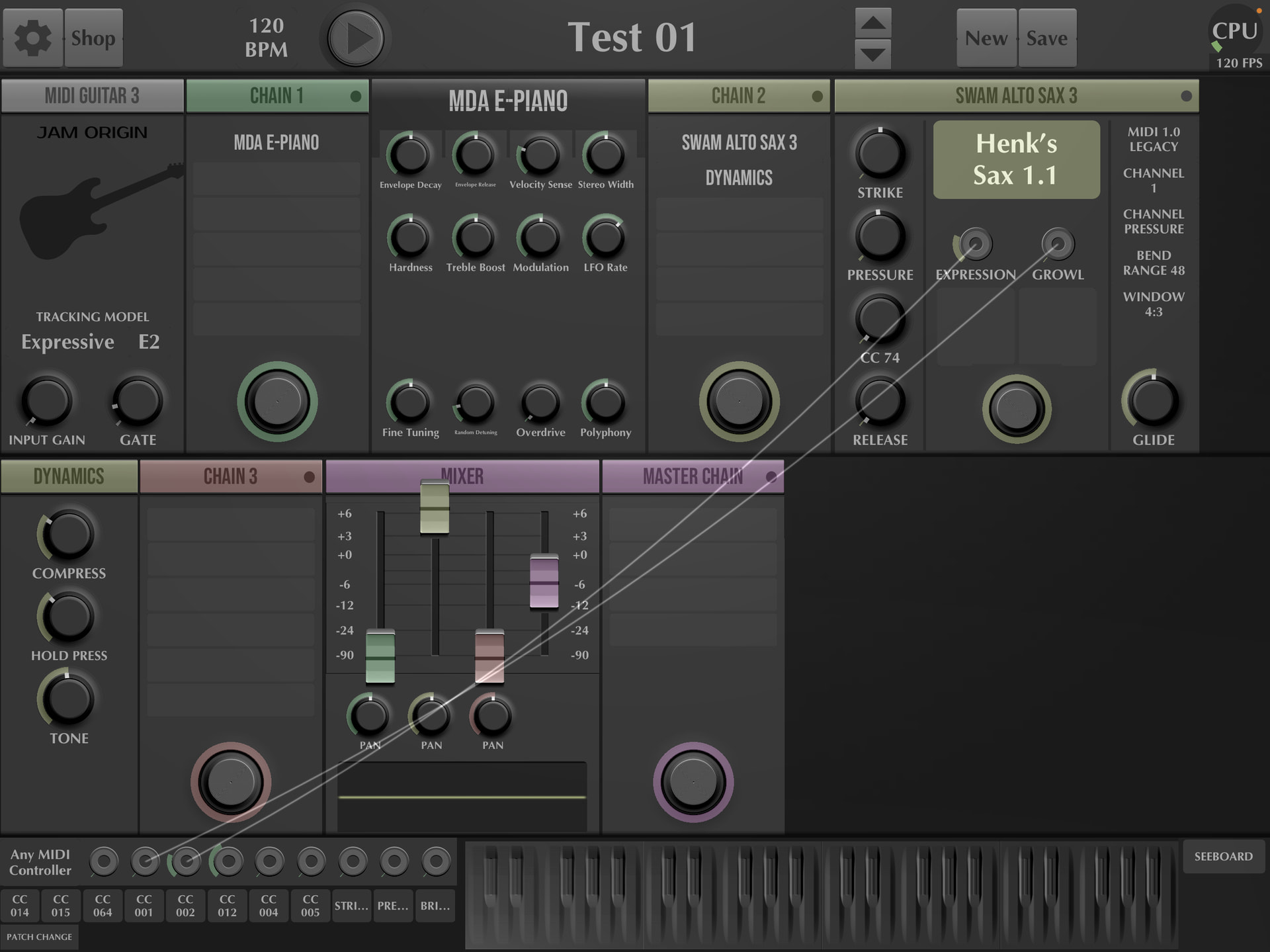

I’ve connected CC2 to the expression of the SWAM sax using the TEC breath controller. The problem that I’m having is that the expression never goes lower than 20% (see attachment). Also the velocity of the guitar picking will trigger notes on the SWAM Sax - I would like this to only occur when the breath controller is blown. Are these related? And what can be done.

[Vaultnaemsae]

Is your controller set up correctly?

Have you tested its output range on a MIDI monitor?

[Dutti67]

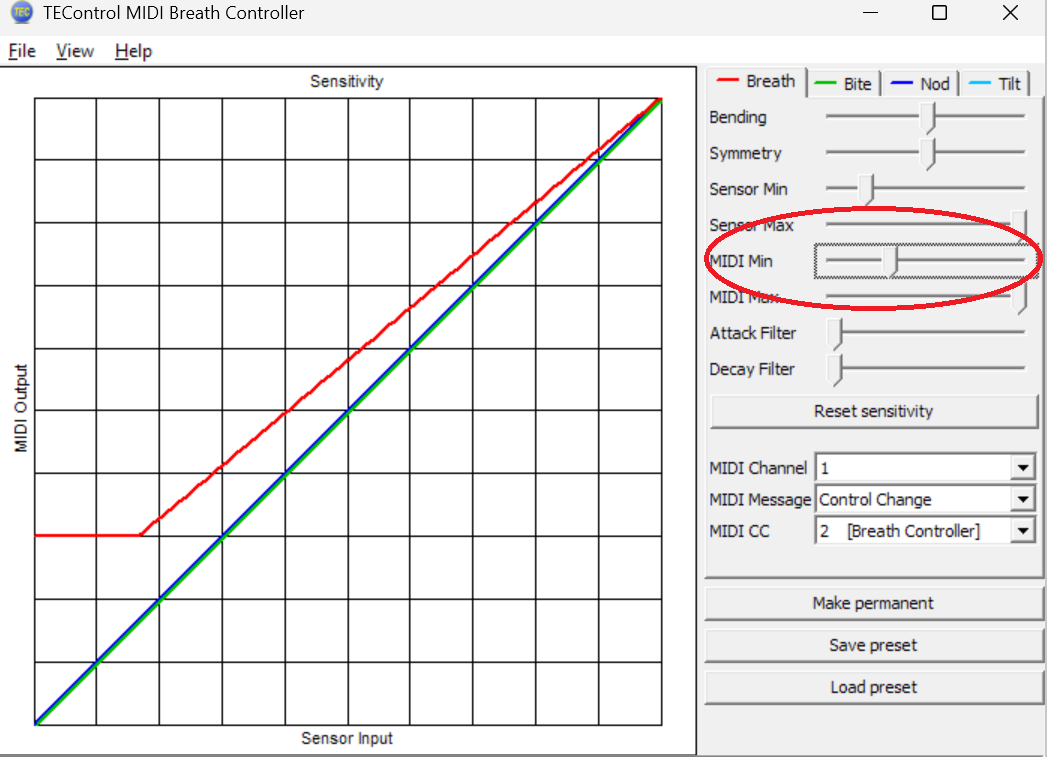

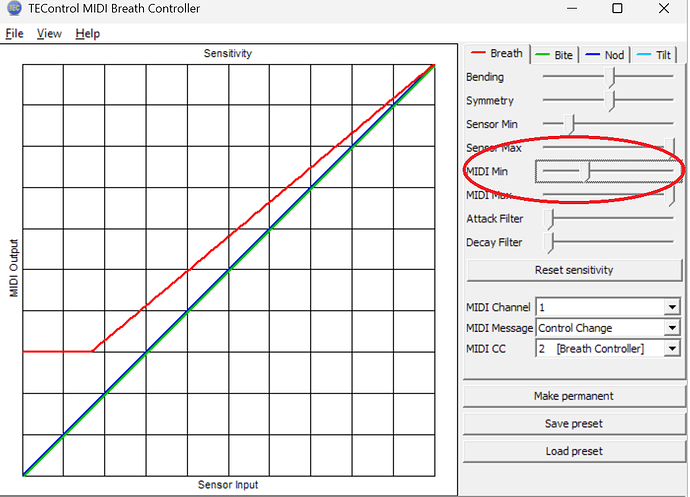

As @Vaultnaemsae suggested, check the controller settings using the TEC app. Make sure the “min” values are set to “zero” for the applicable CC commands.

[henkdawson]

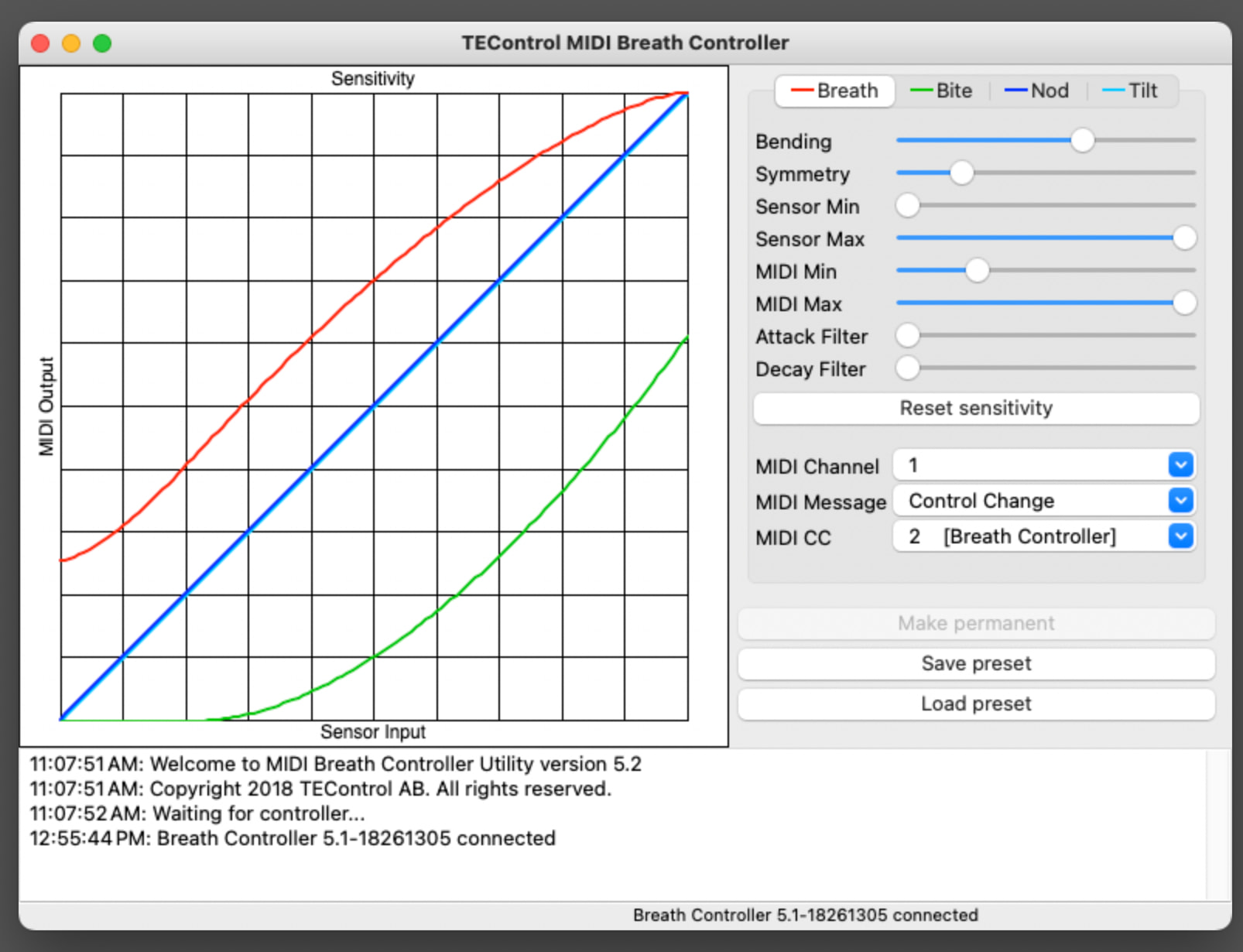

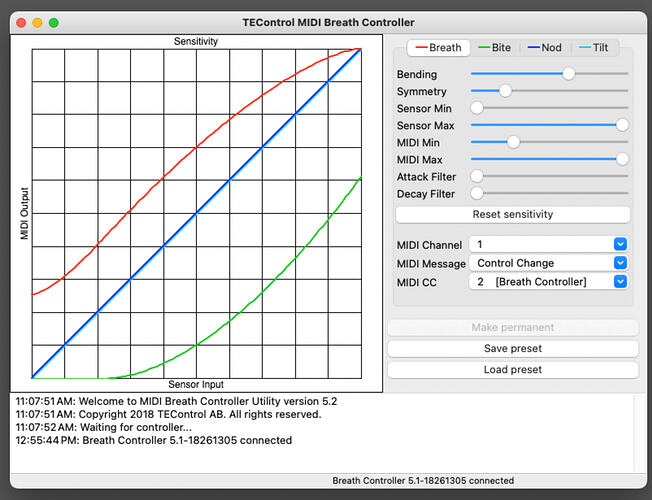

That was it! Thank you so much!! once I fixed these curves everything worked as expected.
